Operating Specifications
| Input voltage | : | 190V~265V AC |
| Battery | : | Self-contained Ni Cd Battery |
| Battery backup | : | 3 hours |
| Color temperatures | : | 6000 K |
| Frequency | : | 50/60 Hz |
| Optics | : | Acrylic Diffuser |
| Average luminance(White) | : | ≥500 cd/m2 |
| Uniformity | : | ≥0.2 |
Indication of Battery and Self Diagnostics Status
| Function test | Weekly 5 minutes test duration |
| Duration test | The 522nd function test is a duration of 3 hours |
| Green Continuously | Mains available, Charging OK |
| Off | No mains available or emergency mode |
| Red Flashing (1 Hz) | Lamp source faulty |
| Red continuously | Battery failure |
| Red / Green alternating | Test mode |
Essential Features
- Ingress protection 20
- Standard automatic self test
- Suitable for mounting on either a ceiling or a wall by simply changing the end caps
- Safety standard : EN 60598
-
Emergency lighting standard : EN 1838 / CIE S 020 (2007)
- Electromagnetic compatibility EMC Standard
- EN 61547 for EMC immunity
- EN 55015 for disturbance measurement
- Electromagnetic compatibility is essential to prevent electromagnetic eterference which disturbs the operation of Mobile Phones, Pacemakers, internet operation and can cause data loss.
|
Product Code |
Product Name |
Size (mm) L x B x H |
Input Power | Viewing Distance (m) |
Weight (Kg) |

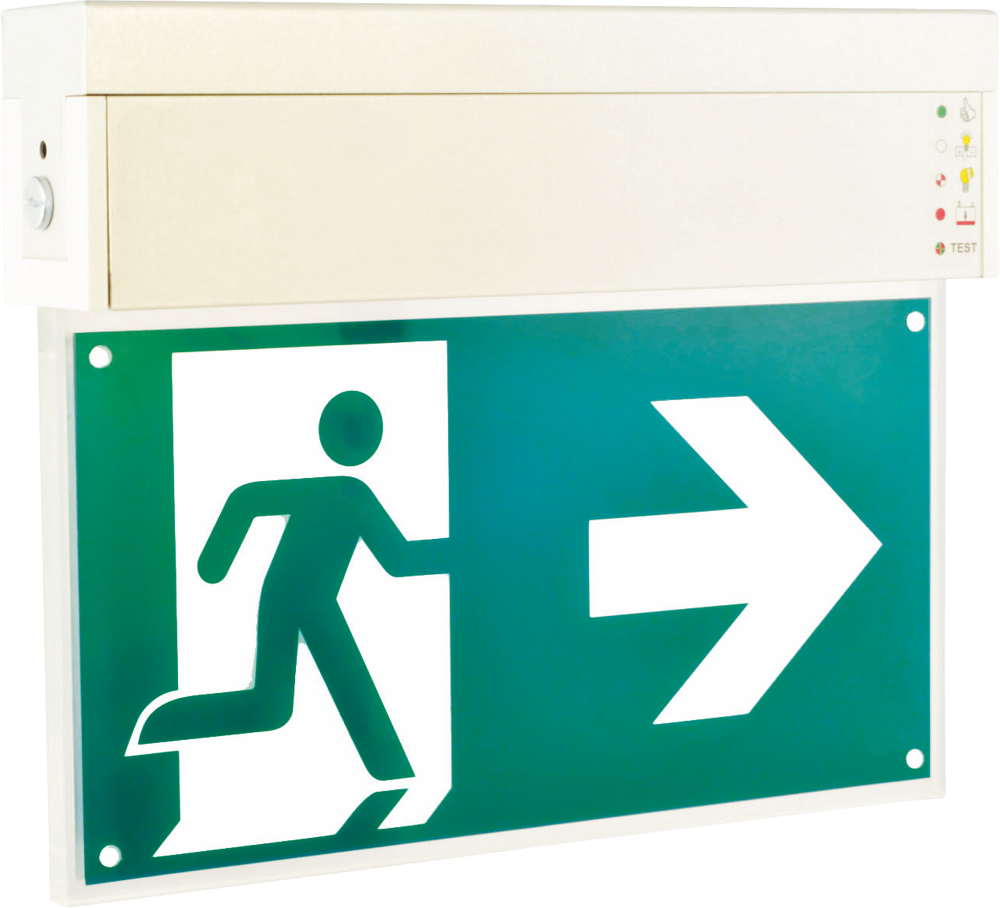

| GS 01 32 | Pathfinder A2 | 320 x 45 x 205 | 8 Watts | 32 | 1.36 |
