FEATURES:
- Mounting: Suspended/ Wall/ Surface
- Housing: Extruded aluminium for excellent heat dissipation
- Impact resistance high transmittance transparent top cover
- Different high quality lenses for different applications
- Best in class power LEDs
- Inbuilt electronic driver
- External surge protection of 10KV available
- Standard Body Colour :Natural Anodised, Other options available
Mechanical Features:
|
Product Code |
Size (mm) (L x B x H) |
Weight (Kg) |
| XT 02 12 | 260 x 108 x 118 | 2.2Kg. |
| XT 02 11 | 260 x 108 x 118 | 2.2Kg. |
| XT 02 51 | 515 x 108 x 155 | 4.5Kg. |
| XT 02 61 | 260 x 216 x 160 | 5.5Kg. |
SPECIFICATIONS:
| Input Voltage | : | 150 V - 260 V AC |
|
Product Code |
Input Power |
System Lumens |
Replacement of |
Energy Saving |
| XT 02 12 | 25 Watts | 2150 | 1 x 36W CFL | 36% |
| XT 02 11 | 30 Watts | 2550 | 2 x 24W CFL | 44% |
| XT 02 51 | 50 Watts | 4250 | 2 x 36W CFL | 45% |
| XT 02 61 | 50 Watts | 4250 | 2x 36W CFL | 45% |

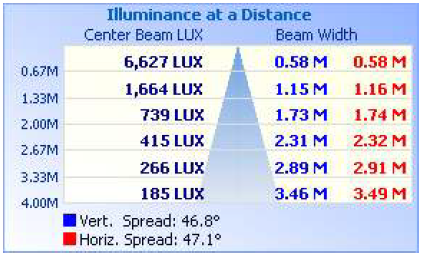

CONE DIAGRAM
30W XT 02 11 50°

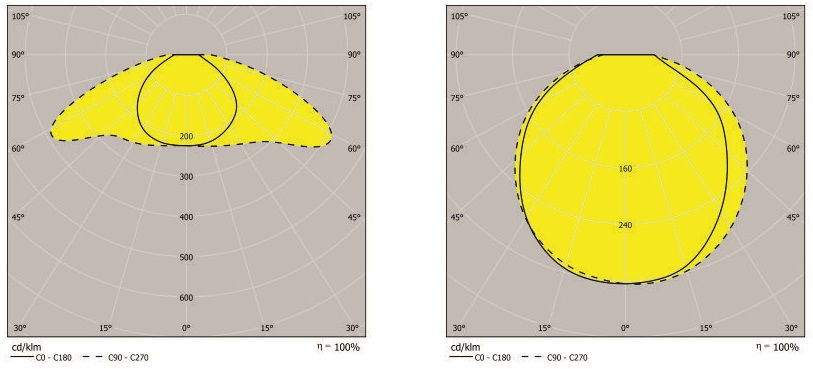

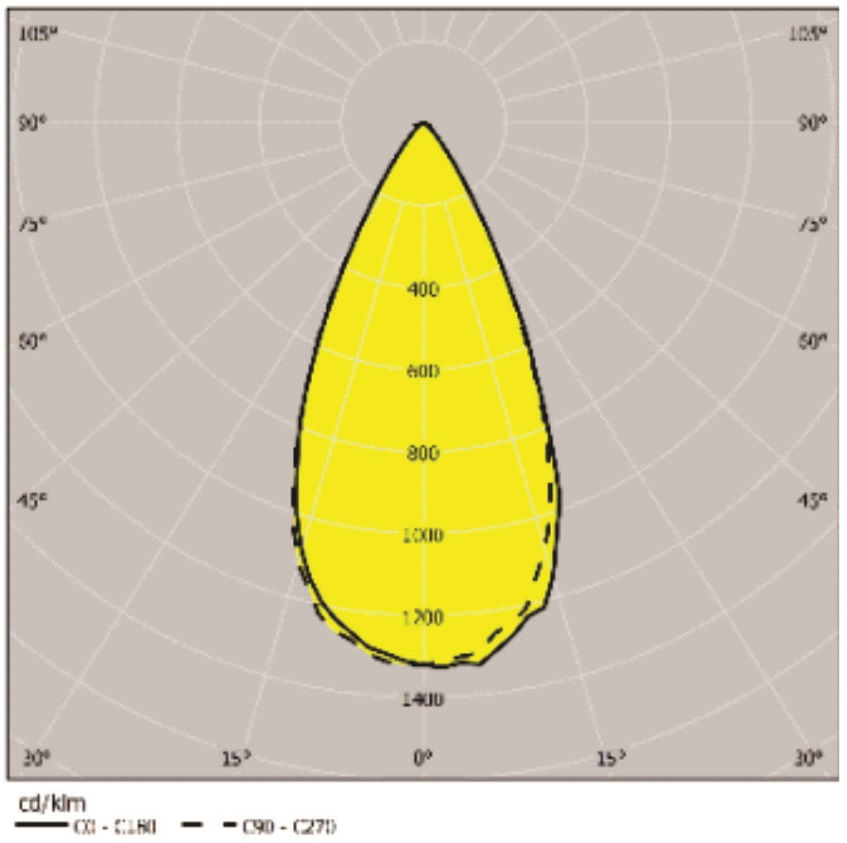

PHOTOMETRIC DATA:
Polar Candela Distribution
Cone Diagram for 40W IC 01 13
