FEATURES:
- Mounting: Surface, suspended
- Housing: Pressure Die Cast Aluminium
- Multiple Designs to select from
- Matrix of high power high efficacy SMD LED's.
- Inbuilt electronic driver
- Standard Body Colour: Grey/ Black
- Cover : Toughened Glass
- Constomized Beam angle

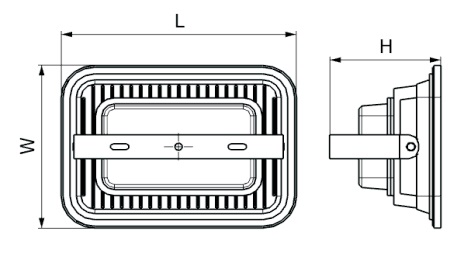

Mechanical Features:
|
Product Code |
Size (mm) (L x B x H) |
| FL - 050 | 225 x 185 x 140 |
| FL - 100 | 285 x 235 x 170 |
| FL - 120 | 287 x 237 x 168 |
| FL - 150 | 287 x 237 x 168 |
| FL - 200 | 350 x 250 x 195 |
| FL - 300 | 350 x 350 x 232 |
| FL - 500 | 600 x 400 x 260 |
SPECIFICATIONS:
| Input Voltage | : | 170 V - 270 V AC |
| Frequency | : | 50/60 Hz |
| Power Factor @230 VAC | : | > 0.9 |
| Colour Temperatures | : | 3000 K / 4000 K / 6000 K |
| Colour Rendering Index | : | > 70 |
| Lumen Efficacy | : | > 120 Lumens per Watt |
| Operating Temperature | : | -20° C to 50° C |
| Ingress Protection | : | IP65 / IP66 |
| Life Span | : | 75,000 Hours |
| Safety Standard | : | IEC 60598 |
| EMC/ EMI Standard | : | IEC61547 / EN55015 |
| Harmonics | : | IEC 61000-3-2 |
OPTIONS AVAILABLE:
- Analog (1-10V) / PWM/ resistive dimming
- Surge protector upto 10KV/ 20KV
- Advance surge protector with upper and lower voltage cutoff and recovery and phase to phase protection.
|
Product Code |
Input Power |
System Lumens for 6000K |
Replacement of |
Energy Saving |
| FL - 050 | 50Watts | 6000 | 70W MH | 75% |
| FL - 100 | 100 Watts | 12000 | 250W MH | 70% |
| FL - 120 | 120 Watts | 14400 | 400W MH | 70% |
| FL - 150 | 150 Watts | 18000 | 400W MH | 60% |
| FL - 200 | 200 Watts | 24000 | 600W MH | 60% |
| FL - 300 | 300 Watts | 36000 | 600W MH | 60% |
| FL - 500 | 500 Watts | 60000 | 600W MH | 60% |
Higher lumen upto 150 per watts will also available on request.
Specifications subject to change

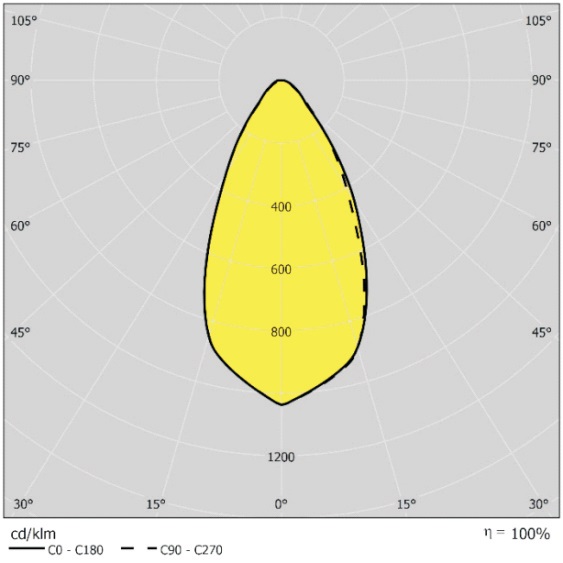

PHOTOMETRIC DATA:
Polar candela distribution
