FEATURES:
- Mounting: On wall as uplighter
- High grade Pressure die cast aluminium housing
- High impact resistant clear poly carbonate cover
- High corrosion resistant power coating for excellent durability
- Best in class powder LEDs from reputed international companies
- Inbuilt electronic driver with upto 4 KV surge protection
- High efficiency PMMA lens for excellent light distribution
- Body Color: Black/Gray
Mechanical Features:
|
Product Code |
Size (mm) (L x B x H) |
Weight |
| IC 06 14 | 325 x 150 x 59 | 1.5Kg. |
| IC 06 13 | 325 x 150 x 59 | 1.5Kg. |
| IC 06 12 | 325 x 150 x 59 | 1.5Kg. |
SPECIFICATIONS:
| Input voltage | : | 100V~265V AC |
| Frequency | : | 50/60 Hz |
| Power factor @230 VAC | : | >0.9 |
| Colour temperatures | : | 3000k / 4000K / 6000K |
| Colour Rendering Index | : | > 75 |
| Operating Temperature | -20°C to 50°C | |
| Ingress Protection | : | IP65 |
| Impact Protection | IK10 | |
| Life Span | 50,000 Hours | |
| Safety standard | : | EN60598 |
| EMC/EMI standard | : | EN61547 / EN55015 |
| Harmonic | : | EN61000-3-2 and 61000-3-3 |
|
Product Code |
Input Power |
System Lumens |
| IC 06 14 | 12 Watts | 1080 |
| IC 06 13 | 15 Watts | 1350 |
| IC 06 12 | 20 Watts | 1825 |
PHOTOMETRIC DATA:

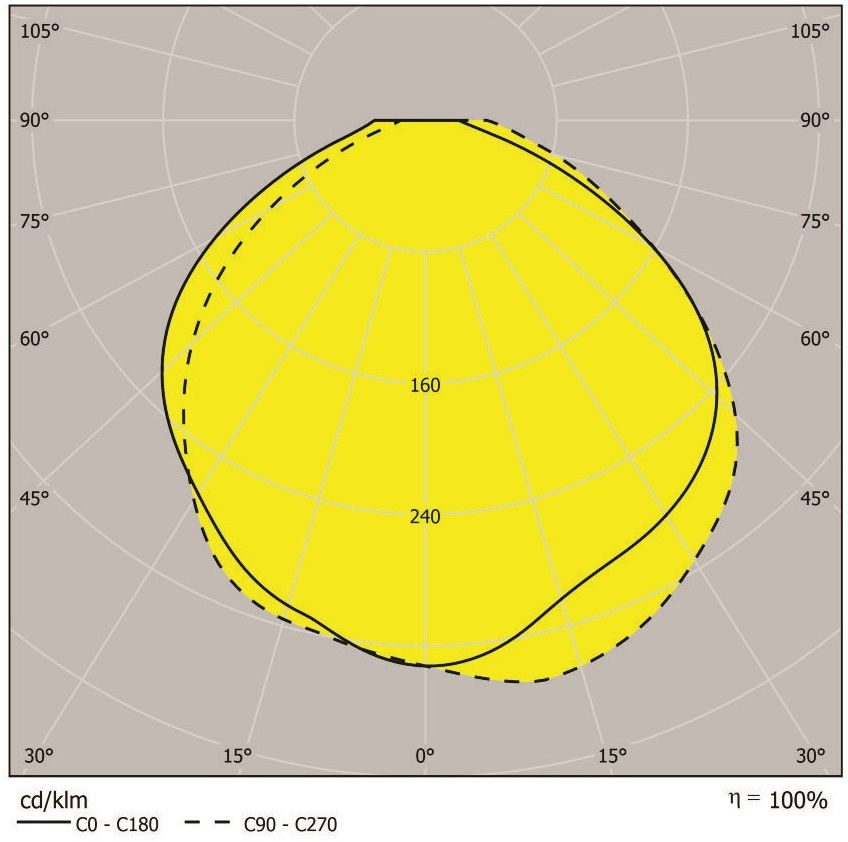

Polar candela distribution

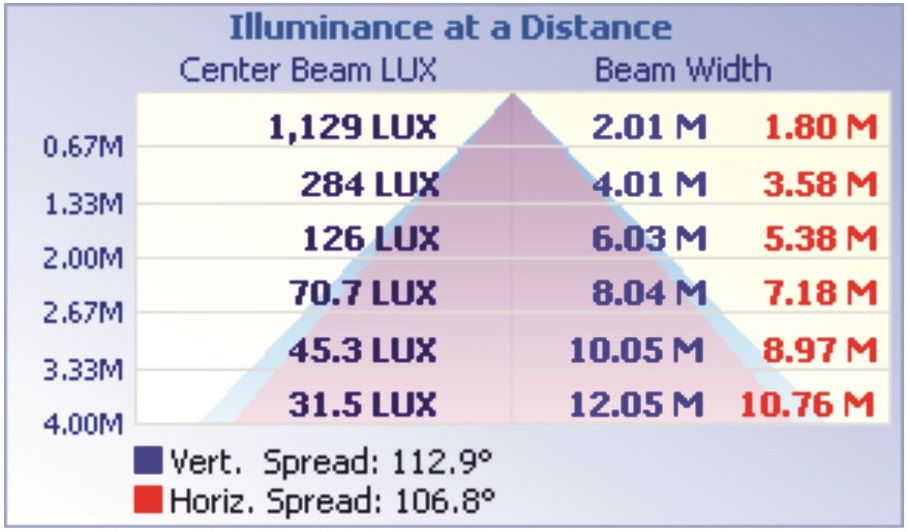

Cone diagram for 15W IC 06 13
