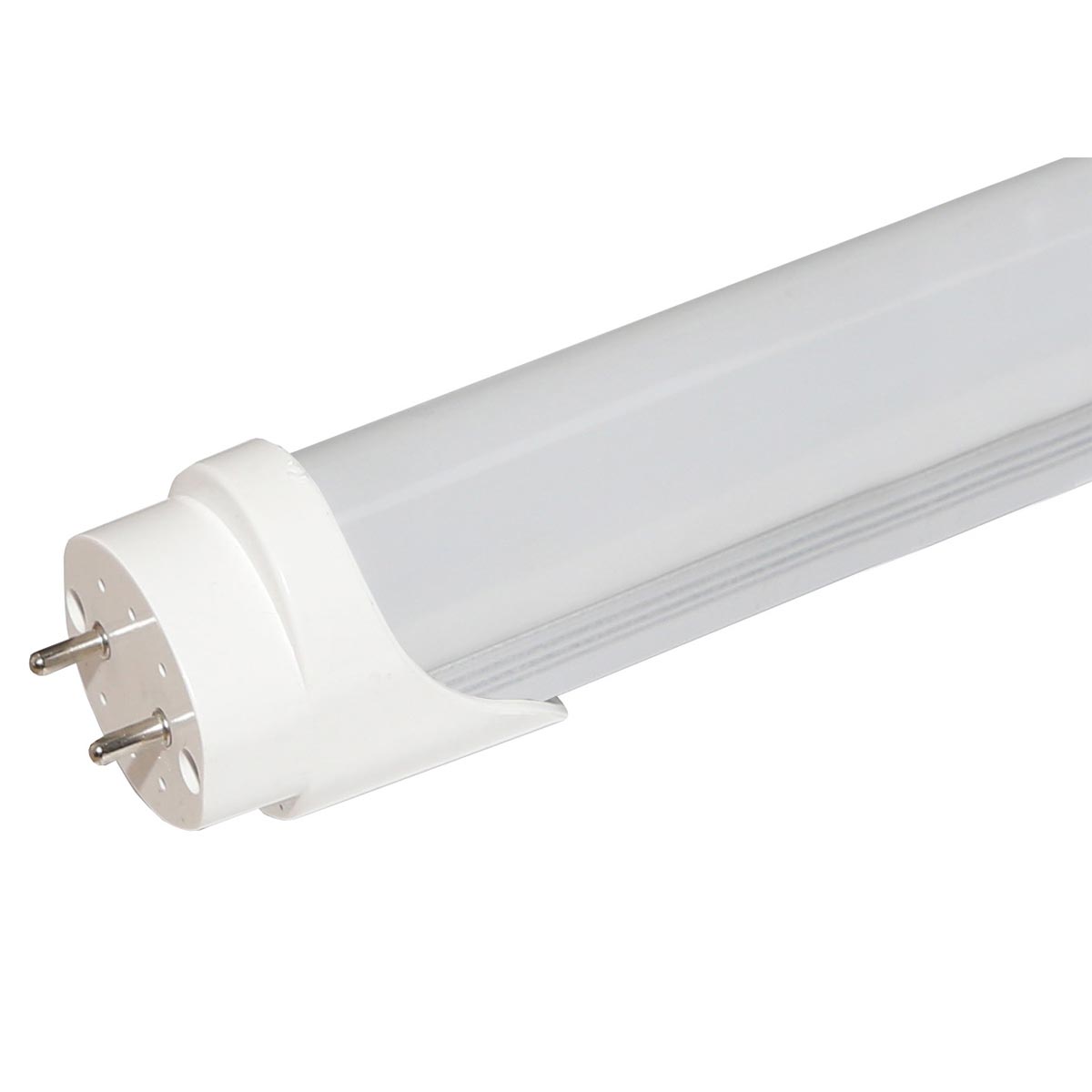

FEATURES:
- Housing: Extruded Aluminium / Polycarbonate with aluminium insert
- G 13 type lamp holder
- Polycarbonate diffuser
- Best in class power LEDs
- Inbuilt electronic driver and 10KV external SPD
- Standard Body Colour : Silver/White
Mechanical Features:
|
Product Code |
Size (mm) (LxBxH) |
| TLT8 - 010 | 600 |
| TLT8 - 018 | 1200 |
| TLT8 - 020 | 1200 |
| TLT8 - 022 | 1200 |
SPECIFICATIONS:
| Input Voltage | : | 170 V - 270 V AC |
| Frequency | : | 50/60 Hz |
| Power Factor @230 VAC | : | > 0.9 |
| Colour Temperatures | : | 3000 K / 4000 K / 6000 K |
| Colour Rendering Index | : | > 85 |
| Lumen Efficacy | : | 120 Lumens per Watt |
| Ingress Protection | : | IP20 |
| Life Span | : | 75,000 Hours |
| Safety Standard | : | IEC 60598 |
| Product Code | Input Power | System Lumens | Replacement of | Energy Saving |
| TLT8 - 010 | 10 Watts | 1000 | 18 W FTL | 50% |
| TLT8 - 018 | 18 Watts | 1800 | 36 W FTL | 50% |
| TLT8 - 020 | 20 Watts | 2000 | 36 W FTL | 50% |
| TLT8 - 022 | 22 Watts | 2200 | 36 W FTL | 50% |
Specifications subject to change
PHOTOMETRIC DATA:
Polar candela distribution
Cone Diagram for 20W T8-A20
