Operating Specifications
| Input voltage | : | 190V~265V AC |
| Battery | : | Self-contained Ni Cd Battery |
| Battery backup | : | 3 hours |
| Frequency | : | 50/60 Hz |
| Color Temperatures | : | 6000 K |
| Optics | : | Acrylic Diffuser |
| Average Luminance (White) | : | ≥ 500cd/m2 |
| Optics | : | ≥ 0.2 |
Essential Features
| Mounting: Recessed | ||||
| Housing: Pressure die cast aluminium | ||||
| Automatic self test in all standard versions | ||||
| Battery and Driver in separate box | ||||
| 4 Legends and 1 white plug-in plastic sheet included | ||||
| Body color : Black | ||||
| Safety standard : EN 60598 | ||||
| Emergency lighting standard : EN 1838 / CIE S 020 (2007) | ||||
| Electromagnetic compatibility EMC Standard | EN 61547 for EMC immunity | EN 55015 for disturbance measurement | ||
| Electromagnetic compatibility is essential to prevent electromagnetic eterference which disturbs the operation of Mobile Phones, Pacemakers, internet operation and can cause data loss. | ||||
|
Product Code |
Product Name |

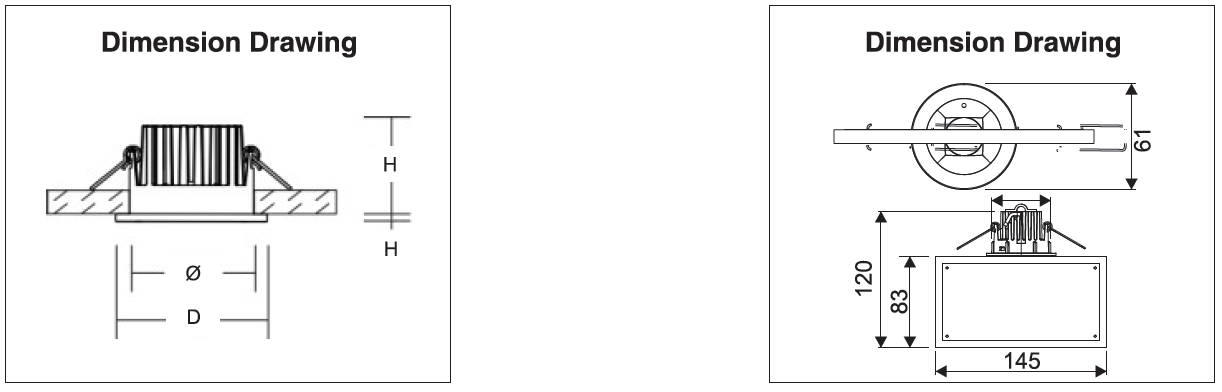

Size (mm) D x H |
Cutout mm |
Input Power |
Weight (Kg) |
| EMVE - 002 | Vantage -Escape | 61 x 50 | 54 | 2.5 Watts | 0.51 |
| EMVA - 002 | Vantage -Area | 61 x 50 | 54 | 2.5 Watts | 0.51 |
| EMVX - 002 | Vantage -Signage | L 145 x B 61 x H 120 | 54 | 2.5 Watts | 0.65 |
