FEATURES:
- Mounting : Surface
- Pressure die cast housing
- Toughened glass
- Wide beam angle
- Best in class power LEDs from reputed international companies
- Inbuilt electronic driver
- Body Color: White

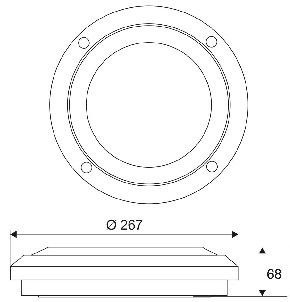

Mechanical Features:
|
Product Code |
Size (mm) (∅ x H) |
Weight (Kg) |
| IC 13 11 | 267 x 68 | 1.5 |
SPECIFICATIONS:
| Input voltage | : | 220V~240V AC |
| Frequency | : | 50/60 Hz |
| Power factor @230 VAC | : | >0.9 |
| Colour temperatures | : | 3000k / 4000K / 6000K |
| Colour rendering index | : | > 75 |
| Operating temperature | : | -20°C to 50°C |
| Ingress Protection | : | IP54 |
| Life span | : | 50000 hours |
| Safety standard | : | EN60598 |
| EMC/EMI standard | : | EN61547 / EN55015 |
| Harmonics | : | EN61000-3-2 and 61000-3-3 |
|
Product Code |
Input Power |
System Lumens |
Replacement of |
Energy Saving |
| IC 13 11 | 16 | 700 | 2 x 18W CFL | 57% |
PHOTOMETRIC DATA:

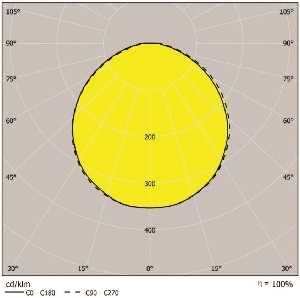

Polar candela distribution
Cone diagram for 40W IC 01 13
