FEATURES:
- Mounting : Suspended/Surface/Recessed
- CRCA Housing
- Opal polycarbonate diffuser
- Surge upto 20KV and phase to phase protection
- Best in class power LEDs
- Inbuilt electronic driver
- Standard Body Colour : White / Grey
Mechanical Features:
|
Product Code |
Size(mm) (LxBxH) |
| IB - 018 | 1150 x 45 x 58 |
| IB - 036 | 1150 x 45 x 58 |
| IB - 040 | 1150 x 45 x 58 |
| IB - 060 | 1150 x 45 x 58 |
SPECIFICATIONS:
| Input Voltage | : | 170V - 270 V AC |
| Frequency | : | 50/60 Hz |
| Power Factor @230 VAC | : | > 0.9 |
| Colour Temperatures | : | 3000 K / 4000 K / 6000 K |
| Colour Rendering Index | : | > 80 |
| Luman Eficiency | : | > 120 Luman per watt |
| Operating Temperature | : | -20° C to 50° C |
| Ingress Protection | : | IP54 / IP65 / IP20 |
| Life Span | : | 75,000 Hours |
| Safety Standard ` | : | IEC 60598 |
| EMC/ EMI Standard | : | IEC61547 / EN55015 |
| Harmonics | : | IEC 61000-3-2 |
|
Product Code |
Input Power |
Systems Lumens |
Replacement of |
Energy Saving |
| WP - 018 | 18 Watts | 1800 | 36W FTL | 50 % |
| WP - 036 | 36 Watts | 3600 | 2 x 36W FTL | 50 % |
| WP - 040 | 40 Watts | 4000 | 2 x 36W FTL | 55 % |
| WP - 060 | 60 Watts | 4000 | 2 x 36W FTL | 55 % |

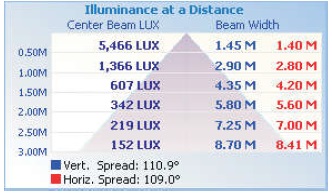

CONE DIAGRAM:
Cone Diagram for 36W IB - 036

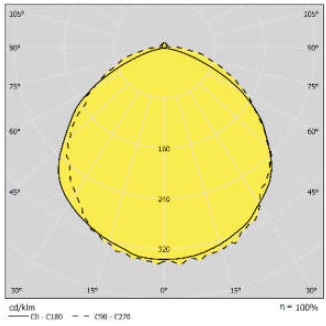

PHOTOMETRIC DATA:
Polar candela distribution
