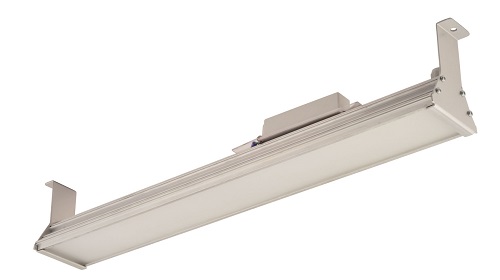

- Riviera Mid Bay
Download PDF Loading...
FEATURES:
- Mounting : Suspended/ Surface/ Recessed
- Extruded aluminium Housing
- Prismatic / Opal acrylic diffuser
- Best in class power LEDs
- Inbuilt electronic driver
- Standard Body Colour :Natural Anodised. Other options available.
- Surge upto 20KV and phase to phase protection
Mechanical Features:
|
Product Code |
Size (mm) (L x B x H) |
| LB - 016 | 575 x 90 x 94 |
| LB - 032 | 1220 x 90 x 94 |
| LB - 040 | 1220 x 90 x 94 |
SPECIFICATIONS:
| Input Voltage | : | 170 V - 270 V AC |
| Frequency | : | 50/60 Hz |
| Power Factor @230 VAC | : | > 0.9 |
| Colour Temperatures | : | 3000 K / 4000 K / 6000 K |
| Colour Rendering Index | : | > 70 |
| Lumen Efficacy | : | > 120 Lumens per Watt |
| Operating Temperature | : | -20° C to 50° C |
| Ingress Protection | : | IP20 |
| Life Span | : | 75,000 Hours |
| Safety Standard ` | : | IEC 60598 |
| EMC/ EMI Standard | : | IEC61547 / EN55015 |
| Harmonics | : | IEC 61000-3-2 |
|
Product Code |
Input Power |
System Lumens |
Replacement of |
Energy Saving |
| LB - 016 | 16 Watts | 1920 | 2 x 18W CFL | 62% |
| LB - 032 | 32 Watts | 3840 | 2 x 26W CFL | 42% |
| LB - 040 | 40 Watts | 4800 | 2 x 36W CFL | 46% |
PHOTOMETRIC DATA:

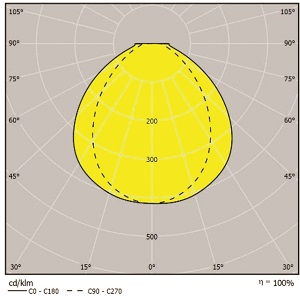

Polar Candela Distribution
Cone Diagram for 40W LB - 040
